Hong Kong Med J 2014;20:161–4 | Number 2, April 2014
DOI: 10.12809/hkmj133922
© Hong Kong Academy of Medicine. CC BY-NC-ND 4.0
CASE REPORT
A rare cause of severe diarrhoea diagnosed by
urine metabolic screening: aromatic L-amino acid decarboxylase
deficiency
LK Lee, MB, BS, MRCPCH1; KM Cheung, MB, ChB, FHKAM
(Paediatrics)1; WW Cheng, MB, ChB, FHKAM (Paediatrics)1;
CH Ko, FRCP, RCPS (Glasg)1; Hencher HC Lee, FHKCPath,
FRCPA2; CK Ching, FRCPA, FHKAM (Pathology)2;
Chloe M Mak, FHKCPath, FHKAM (Pathology)2
1 Department of Paediatrics
and Adolescent Medicine, Caritas Medical
Centre, Shamshuipo, Hong Kong
2 Chemical Pathology
Laboratory, Department of Pathology, Princess
Margaret Hospital, Laichikok, Hong Kong
Corresponding author: Dr LK Lee (samantha_1703@hotmail.com)

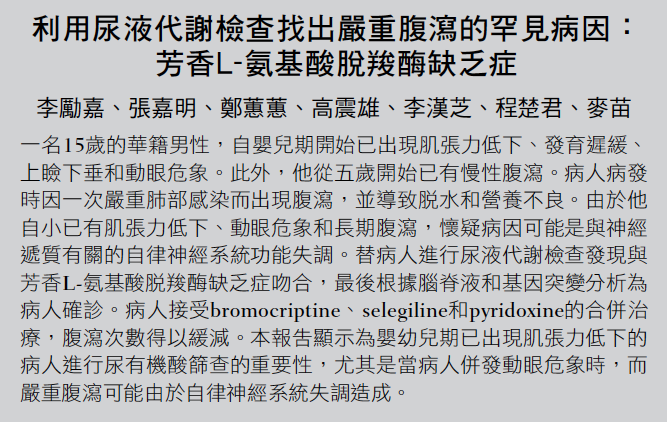

Abstract
A 15-year-old Chinese male with
infantile-onset
hypotonia, developmental delay, ptosis, and
oculogyric episodes presented with a history of
chronic diarrhoea since the age of 5 years. At
presentation, he had an exacerbation of diarrhoeal
symptoms resulting in dehydration and malnutrition
with a concurrent severe chest infection. In view of
his infantile-onset hypotonia, oculogyric crises, and
protracted diarrhoea, an autonomic disturbance
related to neurotransmitters was suspected. Urine
organic acid profiling was compatible with aromatic
L-amino acid decarboxylase deficiency. The diagnosis
was confirmed based on cerebrospinal fluid analysis
and genetic mutation analysis. The patient was treated
with a combination of bromocriptine, selegiline, and
pyridoxine; a satisfactory reduction in diarrhoea
ensued. Our report highlights the importance of
urine organic acid screening in infantile-onset hypotonia,
especially when accompanied by
oculogyric crises, and severe diarrhoea which could
manifest as a result of autonomic disturbance.
Case report
A 15-year-old Chinese male, with neurological
impairment and a history of chronic diarrhoea,
presented with intractable diarrhoea after an
episode of severe pneumonia with a pleural effusion
that eventually resolved after 8 weeks of antibiotic
therapy. The chronic watery diarrhoea (averaging
7 motions/day) persisted despite cessation of
antibiotics for 1 month. His body weight had dropped
from 26.6 kg to 21.7 kg. Hydration and electrolyte
balance was maintained by 1.7 L/day of lactose-and-sucrose-free elemental formula and intravenous
fluid, supplemented by potassium (1.8 mmol/kg/
day). Serial infection screens for rotavirus, norovirus,
bacterial culture, ova, cysts, and Clostridium difficile
toxin were negative. Blood tests yielded a reduced
plasma albumin level (24 g/L; reference range, 37-47 g/L), but the blood lymphocyte count (2 x 109 /L)
and immunoglobulin levels (IgG 1980 mg/dL,
IgA 447 mg/dL, IgM 111 mg/dL) were normal.
Intravenous octreotide (mimics somatostatin) up to
200 μg per day was given for 1 week with a view to
easing his diarrhoea,1 but no obvious benefit ensued.
On reviewing the history, the patient had global
developmental delay and truncal hypotonia since
the age of 8 months. He became bed-bound aged 1.5
years and also had a history of recurrent aspiration pneumonia since early childhood. His recurrent
pneumonia became worse in 2008 (aged 11-12 years).
After a gastrostomy and fundoplication when he was
13 years old, his condition improved partially, but
he still endured two to three episodes of pneumonia
every year. At the age of 15 years he had an episode of
pneumonia associated with a pleural effusion, which
was by far the most severe since his gastrostomy and
fundoplication. Bilateral ptosis had been noted when
he was 3.5 years old, and brief episodes of up-rolling
eyeballs were reported since the age of 4 years. The
electroencephalogram showed sharp waves over
both hemispheres, especially over both temporal
and the left centro-temporal areas. The patient was
treated with carbamazepine, but there was minimal
improvement of his abnormal eye movements.
Metabolic workup, including thyroid function tests,
and determination of ammonia, lactate, and glucose
levels and urine amino acids screening yielded nil
abnormal. Magnetic resonance imaging of the brain,
muscle biopsy, sural nerve biopsy, the Tensilon
test, hearing and ophthalmological screening were
all unremarkable. Genetic studies excluded spinal
muscular atrophy, myotonic dystrophy, and Fragile
X syndrome. At the age of 5 years, he started having
chronic watery diarrhoea, which occurred after each
episode of aspiration pneumonia with respiratory failure. Stool microscopy showed one white cell
per high power field, yielded no fat globules, ova,
or cysts. Clostridium difficile cytotoxin and stool
cultures were negative. Stool-reducing substance
was undetectable. Serum cortisol was normal. Four
months after a trial of semi-elemental and elemental
formula and the use of anti-diarrhoeal medication,
there was some improvement of his diarrhoea. The
patient’s body weight remained at the third percentile
with a fluid intake of approximately 1.3 L/day, and at
that time his diarrhoea was regarded as functional.
The patient was transferred to our unit at the
age of 6 years. Aged 9 years, he had an unexplained
witnessed cardiac arrest in the Developmental
Disabilities Unit of the Caritas Medical Centre,
which was confirmed to be asystolic. Consequently,
the patient suffered permanent neurological damage.
When he was 11 years old, there was an episode of
protracted hypotension with bradycardia (for 5
hours), which followed sedation (with diazepam
0.1 mg/kg) for an oesophagogastroduodenoscopy.
Aged 13 years, he had an exacerbation of severe
watery diarrhoea after undergoing laparoscopic
fundoplication and gastrostomy, which was followed
by marked weight loss (3.9 kg) over 1 month. There
was no steatorrhoea; the patient’s lipid profile was
normal and stool cultures were again negative.
The diarrhoea ameliorated after he started feeding
with semi-elemental prebiotic formulas, as well
as treatment with diphenoxylate and atropine. He
regained his body weight reaching 26.6 kg over the
subsequent year. The entire episode was attributed
to postoperative dumping syndrome.
In view of the multisystem involvement, urine
metabolic profiling was performed. This showed
hyper-excretion of vanillactate, 3-O-methyl-DOPA
and N-acetyl-vanilalanine with hypo-excretions of
5-hydroxyindoleacetic acid (5-HIAA) and vanillylmandelic
acid. The result was compatible with aromatic L-amino acid decarboxylase (AADC)
deficiency. The diagnosis was confirmed by
cerebrospinal fluid examination, which showed
a marked increase in 3-O-methyl-DOPA (365
nmol/L) and 5-hydroxytryptophan (72 nmol/L),
with undetectable 5-HIAA (<5 nmol/L) and
homovanillic acid (<5 nmol/L). Mutation analysis
of the DOPA decarboxylase (DDC) gene revealed
a heterozygous c.714+4A>T and c.1312T>C
(p.Cys438Arg) mutation. This particular mutation
NM_000790.3(DDC):c.714+4A>T was known to
cause AADC deficiency and was by far the most
common mutation causing this condition in the
Chinese.2 The patient was given a combination of
bromocriptine 2.5 mg twice a day, selegiline 5 mg
daily, and vitamin B6 200 mg twice daily for the next
6 months and appeared to have a good response,
as inferred by the reduced frequency of diarrhoeal
episodes (2-3 times/day), weight gain to 27.7 kg
(at latest follow-up), and diminished recourse to
potassium supplementation (0.7 mmol/kg/day).
He also became more tolerant of higher milk-drip
rates (from 50 to 300 mL/h) and volume of fluid
intake (1.5 L/day). He has had no recurrences of
severe diarrhoea accompanying subsequent illness
episodes.
Discussion
Deficiency of AADC is a rare metabolic disorder;
worldwide, less than 100 patients have been reported.3
The patient commonly presented at the age of less
than 1 year, with developmental delay, dystonia, and
autonomic dysfunction. Diarrhoea was reported in
50% of the patients in one Taiwan series,4 however,
severe diarrhoea was seldom reported. This case
report highlights the importance of a high index of
suspicion for neurotransmitter disease in infantile-onset
hypotonia with extrapyramidal features, and
shows that severe diarrhoea can be the predominant
feature of an autonomic disturbance.
Since AADC is an important enzyme in
monoamine biosynthesis (Fig), if lacking it results
in dopamine and norepinephrine deficiency.
Norepinephrine deficiency results in unopposed
acetylcholine activity, leading to increased intestinal
motility and relaxation of sphincters. The resultant
reduction in intestinal transit time may impair
absorption. Moreover, unopposed acetylcholine
activity stimulates intestinal secretion, which also
contributes to diarrhoea.5 A shorter transit time
in the distal small bowel has also been reported in
diabetic patients with autonomic dysfunction.6 7 The
rapid passage of chyme into the large bowel results in
impaired water and electrolyte absorption and hence
diarrhoea, for which a defect in alpha-adrenergic
activity is thought to play a key pathological
role.6 7 The autonomic features present in our
patient (bilateral ptosis, and protracted periods of hypotension with bradycardia) are also compatible
with AADC deficiency. Moreover, the unexplained
cardiac arrest could have been due to unopposed
vagal tone; evidently, in AADC deficiency a stress
as minor as catheter insertion can result in severe
bradycardia and cardiac arrest.8 Autonomic
dysfunction was prominent in our patient, and
potentially could account for the severe diarrhoea.
In the literature, patients have been
diagnosed during infancy or early childhood owing
to movement disorders or autonomic features,
including truncal hypotonia, hyper-reflexia,
oculogyric crises, ptosis, sweating, nasal congestion,
and labile blood pressures and heart rates. Owing to
a reduced lifespan, clinical features in late childhood
are rarely reported. The presentation with chronic
diarrhoea punctuated by episodic exacerbations of
dehydration and malabsorption with superadded
neurological impairment may result in the
characteristic clinical features of AADC deficiency
in the late childhood. Although the diarrhoea in our
patient responded favourably to the combination of dopamine receptor agonist, monoamine, oxidase
inhibitor and pyridoxine (the cofactor for AADC),
no improvement in cognitive or motor function was
observed. According to the literature, the clinical
efficacy of dopamine agonists, monoamine oxidase
inhibitors, AADC cofactors (pyridoxine and pyridoxal
phosphate [PLP]), and anticholinergics remains
variable.2 Commonly used dopamine agonists aimed
at improving motor deficits include bromocriptine
and pergolide. Selegiline has been reported to
improve oculogyric crises, muscle tone and strength,
gastro-intestinal function, hypersalivation and sleep
patterns, but according to some reports such effects
were transient.9 Pyridoxine (usual dosage of 100-400
mg/day) was commonly added to the treatment with
the aim of boosting AADC activity through cofactor
excess, but has not been reported to significantly
improve clinical outcomes. The use of pyridoxine
145 mg/kg/day had been reported, but has resulted
in significant gastro-intestinal side-effects that
warranted dose reduction.9 There was evidence
that PLP, the active metabolite of pyridoxine, was important for AADC stability. It was postulated
that the direct enteral administration of this
compound could be dephosphorylated by intestinal
phosphatases, absorbed into the bloodstream, and
cross the blood-brain barrier. Conceivably, this could
provide a more efficient supply of PLP to the brain
than pyridoxine (that requires multiple metabolic
steps).9 10 However, the necessary efficacious dose
has not been established9 and clinical outcomes
still remain unclear. At the moment, even with early
diagnosis, the overall prognosis of patients with
AADC deficiency remains guarded, particularly
in terms of neurological outcomes and autonomic
disturbance.2
References
1. Farthing MJ. Octreotide in the treatment of refractory diarrhoea and intestinal fistula. Gut 1994;35(3 Suppl):S5-10. CrossRef
2. Brun L, Ngu LH, Keng WT, et al. Clinical and biochemical features of aromatic L-amino acid decarboxylase deficiency. Neurology 2010;75:64-71. CrossRef
3. Lee HC, Lai CK, Yau KC, et al. Non-invasive urinary screening for aromatic L-amino acid decarboxylase deficiency in high-prevalence areas: a pilot study. Clinica Chimica Acta 2012;413:126-30. CrossRef
4. Lee NC, Shieh YD, Chien YH, et al. Aromatic L-amino acid decarboxylase deficiency in Taiwan. Eur J Paediatr Neurol 2009;13:135-40. CrossRef
5. Ganong WF. Review of medical physiology. 20th ed. New York: Lange; 2001.
6. Rosa-e-Silva L, Troncon LE, Oliveira RB, Foss MC, Braga FJ, Gallo Júnior L. Rapid distal small bowel transit associated with sympathetic denervation in type I diabetes mellitus. Gut 1996;39:748-56. CrossRef
7. Chang EB, Bergenstal RM, Field M. Diarrhea in streptozocin-treated rats. Loss of adrenergic regulation of intestinal fluid and electrolyte transport. J Clin Invest 1985;75:1666-70. CrossRef
8. Swoboda KJ, Saul JP, McKenna CE, Speller NB, Hyland K. Aromatic L-amino acid decarboxylase deficiency: overview of clinical features and outcomes. Ann Neurol 2003;54 Suppl 6:S49-55. CrossRef
9. Allen GF, Land JM, Heales SJ. A new perspective on the treatment of aromatic L-amino acid decarboxylase deficiency. Mol Genet Metab 2009;97:6-14. CrossRef
10. Clayton PT. B6-responsive disorders: a model of vitamin dependency. J Inherit Metab Dis 2006;29:317-26. CrossRef
